Turning, milling, laser cutting, 3D printing
Our contract manufacturing offers you the precise production of individual parts and small batches. ZAMAG manufactures high-quality components according to your requirements with the utmost precision and adherence to deadlines.
Trust our experience in contract manufacturing.

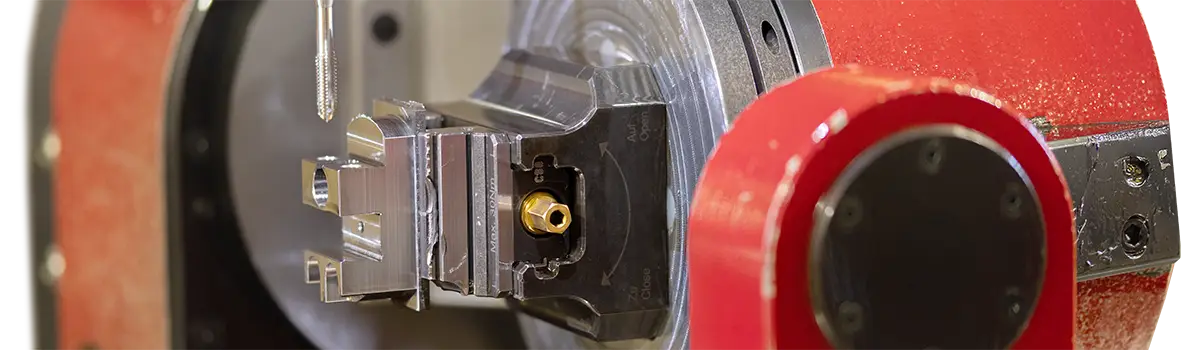

We specialize in the manufacturing of single parts and small batches. Furthermore, the PST precision tilting rotary table, our proprietary Zamag brand, enables the machining of small, complex 5-axis parts. In contract manufacturing, our long-standing employees guarantee precision and punctuality for our customers. Thanks to our wide range of machinery, we achieve a high level of vertical integration in-house, giving us a major influence on price, accuracy, and delivery times.
Programming station:
Ency CAM
Machine list:
Download (PDF)
Our machine park:
| CNC milling: | Machines type: | travel path X-axis: | travel path Y-axis | travel path Z-axis | Spindle speed: |
|---|---|---|---|---|---|
| Manford VL850 (3-axle) | 850mm | 510mm | 510mm | 15,000 RPM | |
| Syntak MV-10 (3-Axis) | 1000mm | 600mm | 600mm | 10,000 RPM | |
| Syntak MV-10 (5-axis) | 150mm | 150mm | 150mm | 10,000 RPM | |
| Microcut Eagle (4-axis) | 600mm | 440mm | 550mm | 10,000 RPM | |
| Mikron VC-1000 (4-axis) | 1000mm | 660 mm | 500mm | 6000 rpm | |
| Fehlmann P18S (3-axis) | 600mm | 300mm | 300mm | 5000 RPM |
| CNC turning: | Machines type: | max. parts-ø: | Peak height: | Peak width: | Spindle speed: |
|---|---|---|---|---|---|
| Ecoca EL-1500 | 300mm | 200mm | 1500mm | 3000 RPM | |
| ZAMAG D102-430 CNC | 100 mm | 102mm | 430mm | 5000 RPM | |
| PEP CNC | 100 mm | 150mm | 500mm | 5000 RPM |
| Flat grinding: | Machines type: | Grinding length: | Lateral stroke: | Grinding height: | Grinding wheel-ø |
|---|---|---|---|---|---|
| Mägerle F10 | 700 mm | 270mm | 425mm | 400mm |
| Cylindrical grinding: | Machines type: | Peak height: | Peak width: | Infeed stroke: | Grinding wheel-ø: |
|---|---|---|---|---|---|
| ZAMAG RSM 102 | 102mm | 200mm | 100 mm | 250 mm |
| Face grinding: | Machines type: | Peak height: | Pendular stroke | Infeed stroke: | Grinding wheel-ø: |
|---|---|---|---|---|---|
| ZAMAG DSM 102-04 | 102mm | 250 mm | 100 mm | 175mm |
| Center hole grinding: | Machines type: | max. clamping-ø: | max. workpiece length: | Grinding spindle: | Spindle speed: |
|---|---|---|---|---|---|
| ZAMAG ZSM-HF-1000-SP180-A | 180mm | 1000mm | Motor spindle | 60,000 rpm |
3D print
Manufacture custom parts? No problem. With our 3D printer, we can print your individually designed element. This technology is also ideally suited for production within the scope of contract manufacturing.
We print Onyx. A nylon filled with micro carbon fibers. This gives excellent strength, heat resistance, surface quality and chemical resistance.
For less demanding parts or for prototyping, we also print the commercially available PLA in various colors.
In addition, the following continuous fibers can be cast in:
Fiberglass: 5 times stronger than onyx. Best strength-to-cost ratio.
HSHT Fiberglass: For high-strength parts at high ambient temperatures.
Kevlar: For particularly robust and impact-resistant parts.
Carbon: For applications that require the greatest possible stiffness and strength, but should be featherlight.
Laser marking
Marking and thus the traceability of parts in the machine industry is becoming increasingly important. In addition, laser marking offers a cost-effective alternative to engraving.

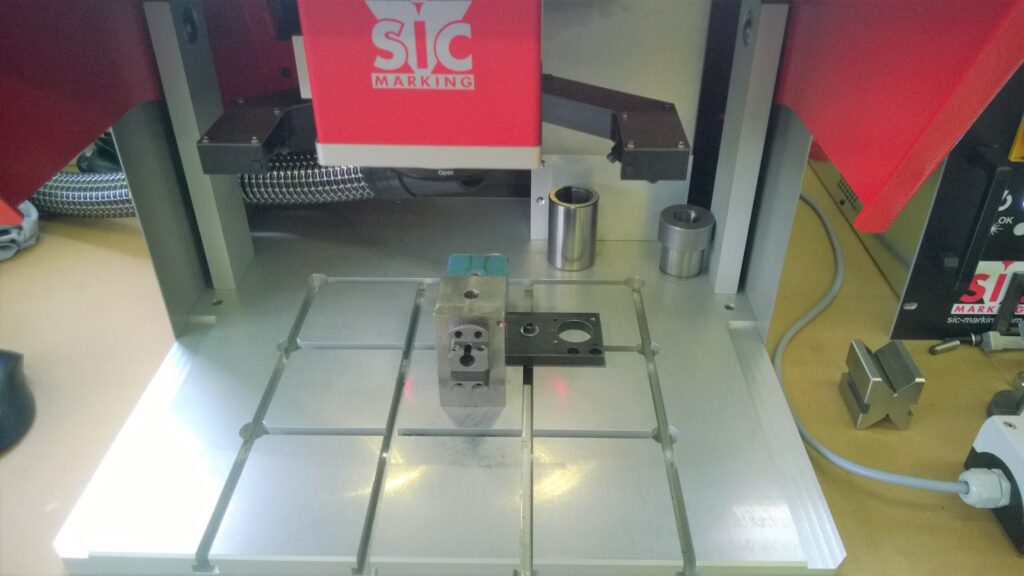

On our in-house laser marking system, we can mark cubic or round components. As part of contract manufacturing, we mark your parts with logos, serial numbers, sequential numbers, deep engraving, barcodes, or 3D codes. Put us to the test.
If you have any questions about laser marking, we will be happy to help you.
| Laser marking: | Machines type: | Editing field: | Clamping area: | Z-height: | Power: |
|---|---|---|---|---|---|
| Laser L-SICL | 100 x 100 mm | 450 x 350mm | 150mm | 20W |
Marking flat
Dividing head

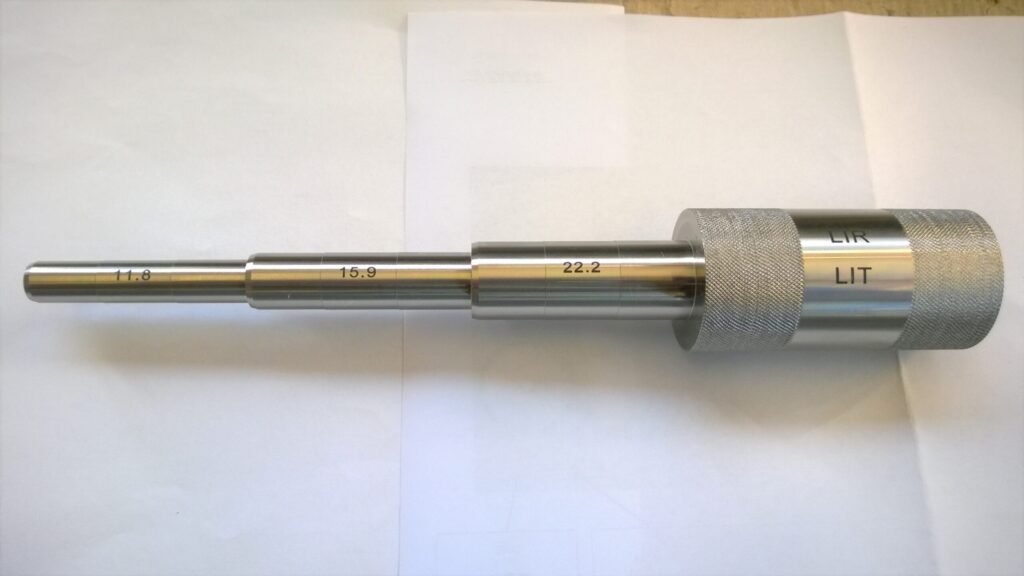

Marking round
SIC Laser
